ULTRA Jig

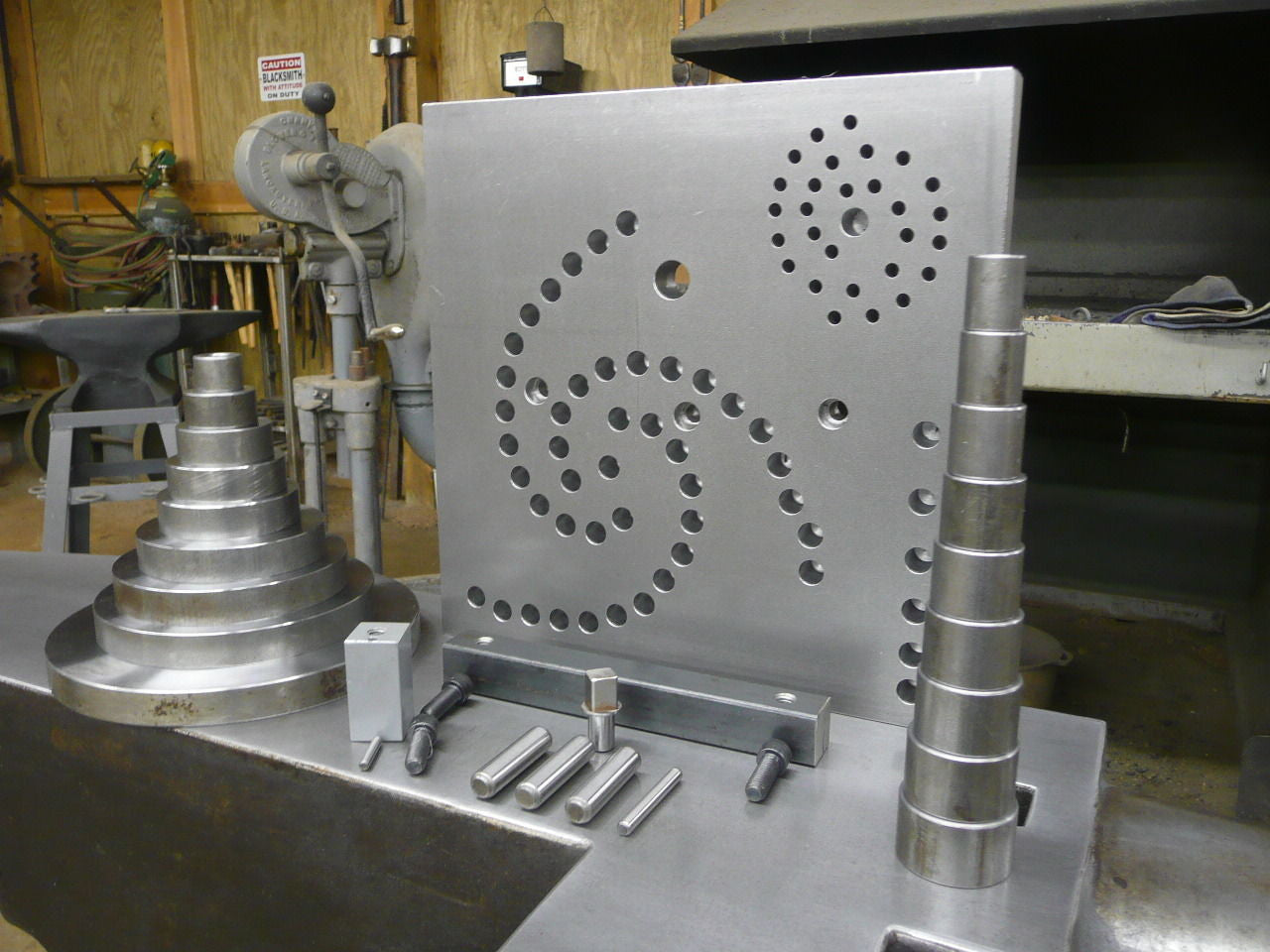

This set comes complete with:

12 x 12" x 1" thick base plate

56 - 1/2 " holes in the big jig

28 -1/4 holes in the small jig

1 - 3/4 " hole

All of the Bosses / Doughnuts / bushings are interchangeable between the large jig and the small jig and the top and side bending jigs

You can make accurate controlled bends in the vertical or horizontal planes by using the discs on one or more pins.

Our very popular Versa jig pattern is incorporated into the Ultra jig.

From 1/2 " dia. thru 8 " dia. you have it covered with the Ultra Jig

Large Bending Jig with 3/4" thick discs: 1", 1 1/2", 2", 2 1/2", 3", 4", 5", 6", and 8" diameter.

Three hardened 1/2" dowel pins.

One 1x1x2" long bolt on hardy shank with dowel.

One 1x1x8" bolt on vise mount

Three 3/8-16 x 1 1/4" socket head cap screws

Integral small Bending Jig with 1" thick discs:3/4 7/8  1", 1 1/8", 1 1/4", 1 3/8", 1 1/2", 1 5/8", 1 3/4" diameter

One socket adapter pin.( allows you to use any 1/2 " drive socket that you may already have as a disc / even deep well which greatly expands the jigs capabilities at no cost to you ).

One 1/4" hardened dowel pin.

Two integral adjustable Bending Forks. One in the face and one on the edge.( all discs fit both bending forks ).

BE SURE TO CHOOSE YOUR HARDY SIZE

Watch the youtube video to get an idea of how useful this tool will be in your shop:  http://youtu.be/hY1d3RJ0TeM

THE WEBSITE ONLY ALLOWS ORDERS WITHIN THE UNITED STATES. ALL INTERNATIONAL ORDER INQUIRIES, PLEASE EMAIL US DIRECTLY FOR YOUR SHIPPING TOTALS. Thanks! mike@yesteryearforge.com

OUR NEWEST VIDEO USING THE ULTRA JIG:  http://youtu.be/07R2lsXHVrg?list=UUlCavgcjdBMmXiQAffed7HQ
